| Power Type: | Electric | Rated Load: | 2000kgs |
|---|---|---|---|
| Overall Size: | 2360x1160x2070mm | Battery: | 48V/560Ah |
| Controller: | CURTIS | Load Center: | 500mm |
| Lift Height: | 3000mm | Wheelbase: | 1510mm |
| Fork Size: | 1070x120x40mm | Turning Radius: | 2075mm |
| Highlight: | CPD20 Electric Fork Truck,ORS Seat Electric Fork Truck,OPS Seat Industrial Lift Truck |
||

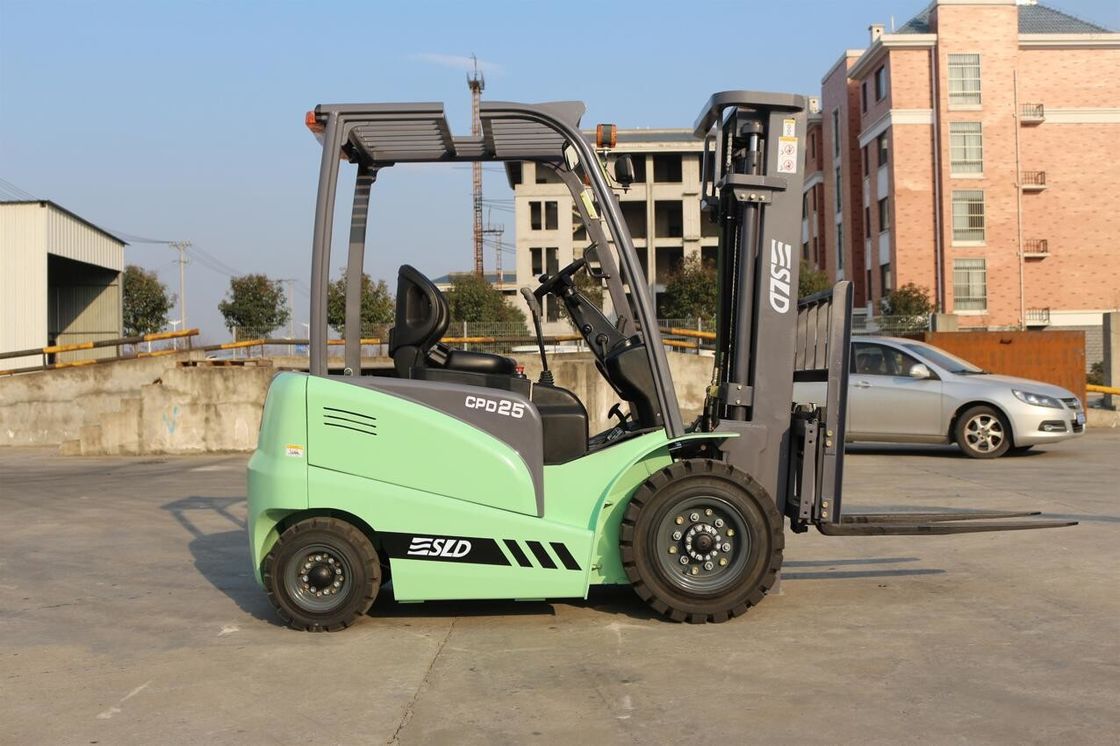

Automatic Industrial Lift Truck Electric Fork Truck Warehouse 1 - 3.5 Ton CPD20
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
Equipped with full set of LED lamps, which are brighter and energy saving.
Equipped with original imported American Curtis electric control system. High voltage and large capacity battery can supply the forklift with the strong power. DC or AC motors are optional according to customers’ requirements.
| General | ||||
| Model | FB20 | FB25 | ||
| Power Type | Electric | Electric | ||
| Load Capacity | kg | 2000 | 2500 | |
| Load centre | mm | 500 | 500 | |
| Tyre | ||||
| Tyre | Pneumatic Tyre | Pneumatic Tyre | ||
| Front Tyre | 7.00-12-12PR | 7.00-12-12PR | ||
| Rear Tyre | 18×7-8-14PR | 18×7-8-14PR | ||
| Overall Dimension | ||||
| Lift Height | mm | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 1070×120×40 | 1070×120×40 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 |
| Mast Lowered Height | mm | 2070 | 2070 | |
| Mast Extended Height(with backrest) | mm | 4070 | 4070 | |
| Length to face of fork(Without fork) | mm | 2360 | 2360 | |
| Overall Width | mm | 1160 | 1160 | |
| Overhead Guard Height | mm | 2240 | 2240 | |
