| Power Type: | Electric | Rated Load: | 2000kgs |
|---|---|---|---|
| Overall Size: | 2360x1160x2070mm | Battery: | 48V/560Ah |
| Controller: | CURTIS | Load Center: | 500mm |
| Lift Height: | 3000mm | Wheelbase: | 1510mm |
| Fork Size: | 1070x120x40mm | Turning Radius: | 2075mm |
| Highlight: | 4.5m Electric Warehouse Forklift,3 Stage Electric Warehouse Forklift,2.5T Warehouse Forklift Trucks |
||

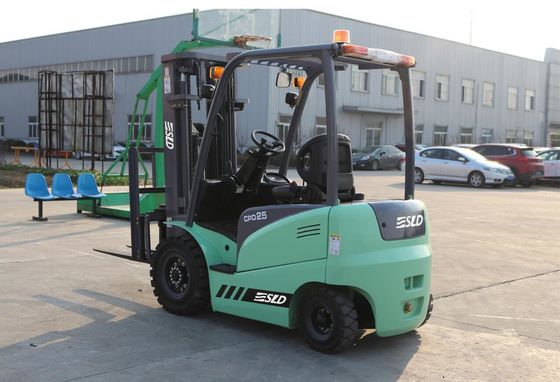

2.5T 48V AC Motor 3 Stage 4.5m Electric Warehouse Forklift
2.5ton electric forklift
1) China top brand battery, 48V/400Ah, 48V/490Ah, water automatic filling system is poptional.
2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,
fork clamps, push/pull, etc..
7) Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.
| General | ||||
| Model | FB20 | FB25 | ||
| Power Type | Electric | Electric | ||
| Load Capacity | kg | 2000 | 2500 | |
| Load centre | mm | 500 | 500 | |
| Tyre | ||||
| Tyre | Pneumatic Tyre | Pneumatic Tyre | ||
| Front Tyre | 7.00-12-12PR | 7.00-12-12PR | ||
| Rear Tyre | 18×7-8-14PR | 18×7-8-14PR | ||
| Overall Dimension | ||||
| Lift Height | mm | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 1070×120×40 | 1070×120×40 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 |
| Mast Lowered Height | mm | 2070 | 2070 | |
| Mast Extended Height(with backrest) | mm | 4070 | 4070 | |
| Length to face of fork(Without fork) | mm | 2360 | 2360 | |
| Overall Width | mm | 1160 | 1160 | |
| Overhead Guard Height | mm | 2240 | 2240 | |
