Product Details:
Payment & Shipping Terms:
|
| Power Type: | Electric | Rated Load: | 3500kgs |
|---|---|---|---|
| Overall Size: | 2560x1230x2120mm | Battery: | 80V/500Ah |
| Controller: | CURTIS | Load Center: | 500mm |
| Lift Height: | 3000mm | Wheelbase: | 1710mm |
| Fork Size: | 1070x125x45mm | Turning Radius: | 2315mm |
| Highlight: | 3500kg Warehouse Electric Pallet Jack,80V 500Ah Battery Electric Pallet Jack,3500kg Compact Forklift Trucks |
||
Compact Forklift Trucks Strong Hydraulic Warehouse Electric Pallet Jack 1.5 - 3.5 Ton

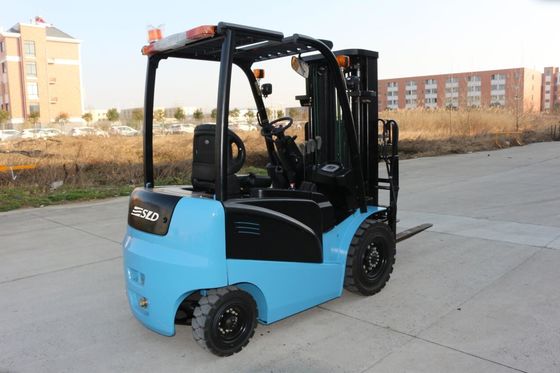

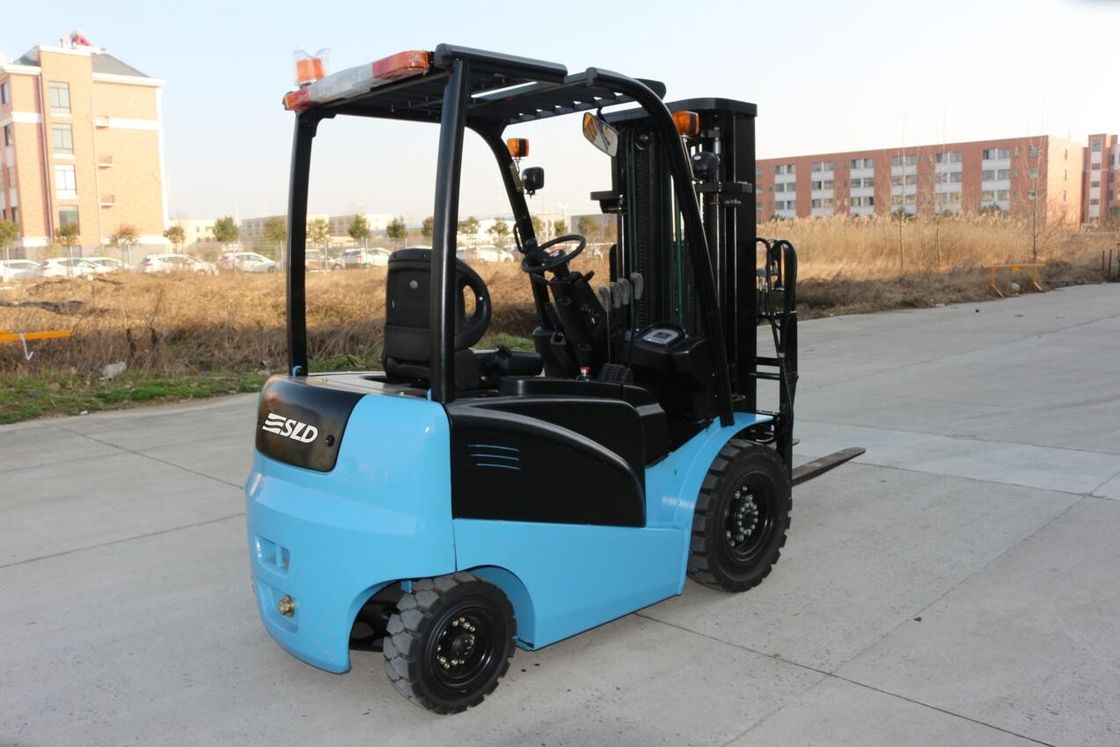

3.5 tons full AC electric forklift 4 wheels
Brand: SLD
Capacity: 3500 kg
Load center: 500mm
2 stage mast lifting height: 3000mm
Fork length:1070mm
Acid-lead battery , 80V/500Ah
Curtis controller
Battery charger
Pneumatic tires
Overhead guard
Led lights and warning light
* Inquiry and consulting support.
* Professional spare parts in stock
* Top brand spare parts supplied.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| General | ||||
| Model | FB30 | FB35 | ||
| Power Type | Electric | Electric | ||
| Load Capacity | kg | 3000 | 3500 | |
| Load centre | mm | 500 | 500 | |
| Tyre | ||||
| Tyre | Pneumatic Tyre |
Front:Pneumatic Tyre Rear:Solid Tyre |
||
| Front Tyre | 28×9-15-12PR | 28×9-15-12PR | ||
| Rear Tyre | 18×7-8-14PR | 18×7-8(Solid tyre) | ||
| Overall Dimension | ||||
| Lift Height | mm | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 1070×125×45 | 1070×125×50 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 |
| Mast Lowered Height | mm | 2115 | 2150 | |
| Mast Extended Height(with backrest) | mm | 4175 | 4175 | |
| Length to face of fork(Without fork) | mm | 2600 | 2600 | |
| Overall Width | mm | 1230 | 1230 | |
| Overhead Guard Height | mm | 2250 | 2250 | |
