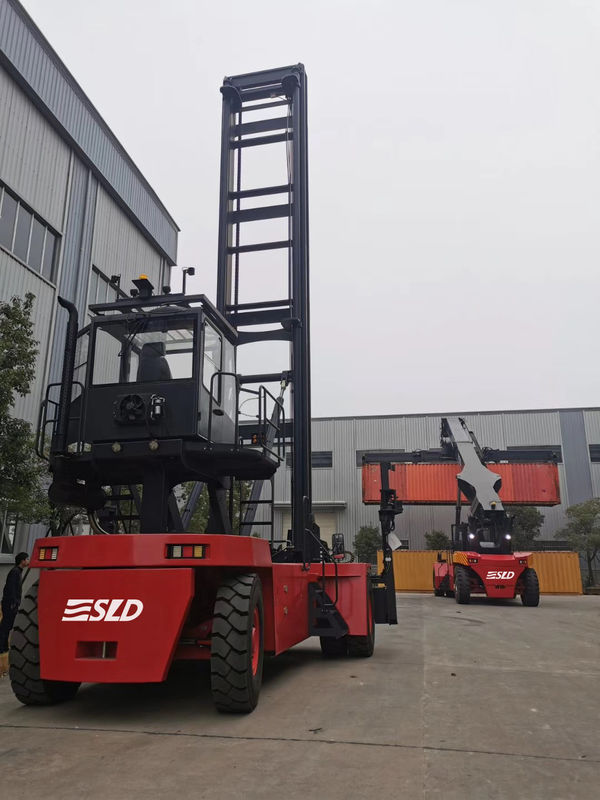

Kessler D102PL341 Drive 8 Tons Empty Container Handler With Ease

Kessler D102PL341 Drive 8 Tons Empty Container Handler With Ease
Kessler D102PL341 Drive 8 Tons Empty Container Handler With Ease

Large Image :  Kessler D102PL341 Drive 8 Tons Empty Container Handler With Ease

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable price USD 0.08-0.15/Piece
Packaging Details: Nude
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10 units per month
Detailed Product Description
Transmission: ZF 5WG261 AUTO Color: Red
Performance: Quality Product New Or Used: New
Spreader Type: Handling ISO 20'-40' Containers Service Weight: 71400 Kgs (unload)
Engine: CUMMINS QSM11-330 Warranty: 1 Year
Highlight:

8 Tons Empty Container Handler

,

CUMMINS Empty Container Handler

,

D102PL341 8 Ton Forklift

Product Description:

Empty Container Handler Product Overview

The Empty Container Handler is a high-performance, quality product designed to efficiently handle empty containers in container yards and depots. With its powerful engine, advanced steering and transmission systems, and heavy duty handling capabilities, this product is the ultimate solution for container voiding facilities, empty container facilitators, and container depopulation managers.

Performance: Quality Product

The Empty Container Handler is built to deliver exceptional performance and quality. Equipped with top-of-the-line components and a reliable engine, this product is designed to handle heavy-duty tasks with ease and precision.

Engine: CUMMINS QSM11-330

The CUMMINS QSM11-330 engine is known for its exceptional power and efficiency. With a maximum horsepower of 330, this engine provides the necessary strength to handle even the heaviest containers. It also boasts a low emission system, making it an environmentally friendly choice.

Steering Axle: Kessler L102

The Kessler L102 steering axle is designed to provide smooth and precise steering, ensuring maximum control and maneuverability for the Empty Container Handler. With its robust construction and advanced technology, this steering axle can handle the toughest job sites with ease.

Transmission: ZF 5WG261 AUTO

The ZF 5WG261 AUTO transmission offers efficient and seamless shifting, allowing for smooth operation and increased productivity. With its durability and advanced features, this transmission can handle the demands of heavy-duty handling tasks.

Drive Axle: Kessler D102PL341

The Kessler D102PL341 drive axle is built to withstand heavy loads and provide maximum traction. With its advanced design and durable construction, this drive axle ensures smooth and efficient movement of containers, even in the most challenging environments.

Key Features of the Empty Container Handler:
  • Powerful CUMMINS QSM11-330 engine
  • Advanced Kessler L102 steering axle
  • Efficient ZF 5WG261 AUTO transmission
  • Durable Kessler D102PL341 drive axle
  • Heavy duty handling capabilities

The Empty Container Handler is the ultimate solution for container voiding facilities, empty container facilitators, and container depopulation managers. With its exceptional performance, top-of-the-line components, and heavy duty handling capabilities, this product is a must-have for any container yard or depot.



Technical Parameters:

CHARACTERISTICS
Model ECH80/7
Load capacity 8 tons
Maximum stacking layer 7
Lifting speed (Laden/Unladen) m/s 0.55/0.60
Lowering speed (Laden/Unladen) m/s 0.60/0.60
Travel speed (Laden/Unladen) Km/h 25/27
Climbing ability % 30
Tractive force KN 107.5
DIMENSIONS
Wheelbase y(mm) 4020
Height of mast,lowered h1 (mm) 11091
Tilt angle (Forward/Backward) Degree 3/4
Height of mast,extended h4 (mm) 19204
Height of cabin h6 (mm) 4326
Height, operator's seat h7 (mm) 3206
Twistlock height lowered h13 (mm) 2290
Maximum twistlock height h3 (mm) 18600
Overall length l1 (mm) 6450
Length to spreader face l2 (mm) 6277
Overall width b1/b2 (mm) 3627/2398
Width of spreader 20'/40' b3 (mm) 6050/12150
Turning radius Wa (mm) 5700
Wheelspan,front wheels b10 (mm) 2880
Wheelspan,rear wheels b11 (mm) 2068
WEIGHTS
Service weight kg 33800
Axle load,front/rear kg 29050/10750
Axle without load,front/rear b13 (mm) 20100/13700
ENGINE
Engine manufacturer/type Cummins/QSB6.7
Cylinder number/Displacement 6/6700cm3
Rated power 129KW@2200rpm
Maximun torque 800NM@1500rpm
Rated current of alternator 70A
Battery 24V(2x12/110)
TRANSMISSION
Manufacturer/type ZF/3WG211AUTO
Clutch type Torque converter
Transmission Auto-shift/interlock
Gear number 3F/3R
BRAKESYSTEM
Service brake Wet-disc
Parking brake Brake enabled when power off
DRIVE AXLE
Manufacturer Kessler/Germany
Type D81PL478-NLB
STEER AXLE
Manufacturer Self-made
Type Z16A1
Steering type-Single cylinder Double action cylinder
TYRES
Drive wheels 14.00-24 24PR
Steering wheels 14.00-24 24PR
Type Pneumatic
Pressure 10 bar
Quantity, front/rear 4/2

Customization:

Customized Service for SLD Empty Container Handler

Brand Name: SLD

Place of Origin: China

Certification: ISO, CE

Minimum Order Quantity: 1 unit

Price: Negotiable price USD 0.08-0.15/Piece

Packaging Details: Nude

Delivery Time: 30 working days

Payment Terms: L/C, T/T

Supply Ability: 10 units per month

Color: Red

New Or Used: New

Transmission: ZF 5WG261 AUTO

Steering Axle: Kessler L102

Warranty: 1 Year

Empty Container Facilitator

Our customized service for SLD Empty Container Handler is designed to provide you with the best solution for handling empty containers. With our expertise in the container industry and our advanced Container Processing System, we can customize our Empty Container Handler to meet your specific needs and requirements.

Container Processing System

Our Container Processing System is equipped with the latest technology and is designed to handle empty containers with ease and efficiency. With our system, you can expect fast and reliable processing of empty containers, saving you time and labor costs.

Empty Container Handler

Our Empty Container Handler is specifically designed to handle empty containers, making it the perfect solution for your container handling needs. With its sturdy construction and advanced features, our Empty Container Handler is highly efficient and durable.

Choose SLD for all your empty container handling needs and experience the difference in quality and performance. Contact us today for more information and let us help you find the best solution for your business.



Packing and Shipping:

Empty Container Handler
Packaging and Shipping

Our Empty Container Handler is carefully packaged and shipped to ensure safe delivery and easy assembly. Here's how we do it:

  • The main components of the handler are securely placed in a sturdy wooden crate to prevent any damage during transportation.
  • All smaller parts and accessories are packed in boxes and labeled for easy identification.
  • The wooden crate is then securely strapped and covered with protective materials to prevent scratches and other external damages.
  • The entire package is then loaded onto a pallet for easier handling and transportation.
  • Our team carefully inspects and checks the package before it is loaded onto the shipping truck.
  • We work with trusted and reliable shipping companies to ensure timely delivery of the handler to your desired location.
  • Upon arrival, our customers can expect the package to be in perfect condition, ready for easy and hassle-free assembly.

.
