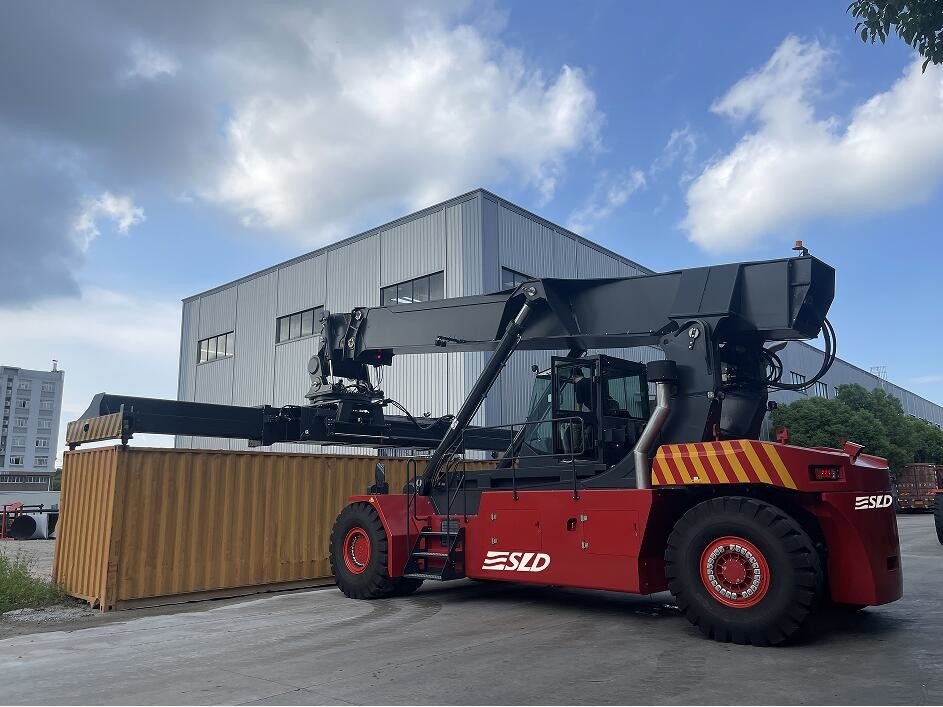

20ft 40ft Container Forklift Reach Stacker Drive Axle Red Container Reach Stacker

20ft 40ft Container Forklift Reach Stacker Drive Axle Red Container Reach Stacker
20ft 40ft Container Forklift Reach Stacker Drive Axle Red Container Reach Stacker

Large Image :  20ft 40ft Container Forklift Reach Stacker Drive Axle Red Container Reach Stacker

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: CE; ISO; FDA
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10 units per month
Detailed Product Description
Engine: CUMMINS QSM11-330 New Or Used: New
Steering Axle: Kessler L102 Spreader Type: Handling ISO 20'-40' Containers
Performance: Quality Product Color: Red
Drive Axle: Kessler D102PL341 Service Weight: 71400 Kgs (unload)
Highlight:

40ft Container Forklift Reach Stacker

,

FDA Forklift Reach Stacker

,

Red Container Reach Stacker

20ft 40ft Container Forklift Reach Stacker Drive Axle Red Container Reach Stacker For Efficient Performance

Product Description:

Container Reach Stacker is a quality product designed for efficient container unloading, loading, and transportation. It is equipped with a CUMMINS QSM11-330 engine and a ZF 5WG261 AUTO transmission, allowing it to have a maximum load capacity of 45000kgs. The product is painted in a vibrant red color, and is built to last while delivering reliable performance. The product is highly recommended for container unloading, loading, and transportation applications.



Technical Parameters:

CHARACTERISTICS
Model SLDR450
Power unit Diesel
Operation type Driver seated
Load capacity (L1, L2, L3) Q (kg) 45000/31000/16000
Load centre, first row (L1) c (mm) 1800
Load centre, second row (L2) C (mm) 3860
Load centre, third row (L3) C (mm) 6400
Axle centre to spreader center (L1-1/2 high) x (mm) 2800
Wheelbase y (mm) 6400
DIMENSIONS
Boom lift angle, raise/lowered α/β(/°) 61/0
Height boom lowered h1 (mm) 4945
Lift height (L1, L2, L3) h3 (mm) 15900/14100/11350
Height, boom extended h4 (mm) 19000
Height of cabin h6 (mm) 3900
Height, operator's seat h7 (mm) 2840
Towing coupling height h10 (mm) 600
Twist lock height lowered h13 (mm) 1495
Overall length with spreader l1 (mm) 11618
Overall length l2 (mm) 8410
Overall width b1/b2 (mm) 4180/3400
Width of spreader 20'/40' b3 (mm) 6050/12150
Ground clearance min. m1 (mm) 345
Ground clearance, centre of wheelbase m2 (mm) 350
Stacking aisle 20' containers Ast (mm) 10225
Stacking aisle 40' containersTurning radius Ast (mm) 13050
Min. pivoting point distance Wa (mm) 8605
Min. pivoting point distance b13 (mm) 3400
Wheelspan, front wheels b10 (mm) 3030
Wheelspan, rear wheel b11 (mm) 2786
WEIGHT
Weight (unladen/laden) kg 71400/116400
Load on drive axle (unladen/laden) kg 36400/101900
Load on steering axle (unladen/laden) kg 35000/14500
PERFORMANCE
Travelling speed (unladen/laden) Km/h 25/21
Gradeability (unladen/laden) % 30/28.8
Tractive force (unladen) Kn 408
Lifting speed (unladen/laden) m/s 0.39/0.28
Lowering speed (unladen/laden) m/s 0.39/0.39
CABIN
Movable closed cabin
Equipped with A/C, cooling/heating functions
Noise level at driver's seat dBA 74
ENGINE
Brand   CUMMINS
Type   QSM11
Cylinder no./displacement   6/10820 cm3
Rated power @ rated speed   250kw @ 2100rpm
Max. torque   1674Nm@ 1500rpm
Rated current of alternator   150A
Battery   24V
TRANSMISSION
Brand   ZF/5WG261 AUTO
Type   Auto-shift/interlock
Clutch type   Torque converter
Gear no.   5F/3R
TYRES
Drive wheels   18.00-25 40PR
Steering wheels   18.00-25 40PR
Type   Pneumatic
Pressure   10 bar
Quantity, front/rear   4/2
TANKS CAPACITY
Hydraulic oil tank L 800
Fuel tank L 500
DRIVE AXLE
Brand   Kessler/Germany
Model   D102PL341
STEERING AXLE
Brand   Kessler/Germany
Model   L102
Steering   Double action cylinder
BRAKE SYSTEM
Service brake   Hydraulic wet-disc
Parking brake   Electric released disc brake, enabled when power off
HYDRAULIC SYSTEM
Twin piston pump
Max. pressure: 310 bar
Load sensing system
Hydraulic cooler with electric motor
Separate brake oil tank
BOOM
2x Dual action lift cylinders
1x Dual action extension cylinder
SPREADER
Handling ISO 20'-40' containers
2x damping cylinder 2x gearbox & brake system
Brand SP45
Rotate degrees -105°/+195°
Sideshift -800/+800mm
TRUCK SAFETIES
Error display system
Counter system for containers
Weighing system (low precision)
Electric anti-overload system
Full can-bus control system
Direction gearshift interlock
Parking brake enabled when power off
Seat switch
SPREADER SAFETIES
Locking/unlocking only after correct landing
Lifting/lowering only when the 4 twistlocks on same position
Anticollision rotation limit switch


Applications:

SLD Container Reach Stacker is designed to offer efficient and reliable cargo container stacking operation. It is an ideal choice for many industries such as shipping, logistics, warehousing, manufacturing and more. This stacker is manufactured in China and is certified by CE, ISO and FDA. With a minimum order quantity of 1 unit, the price of the product is negotiable. It is available in a packaging of nude and can be delivered within 30 working days. The payment terms are L/C, T/T and it can supply up to 10 units per month. This stacker is powered by ZF 5WG261 AUTO transmission and has a service weight of 71400 Kgs (unload). It is a new product and features Kessler D102PL341 drive axle and CUMMINS QSM11-330 engine.



Customization:

Are you looking for a reliable Container Reach Stacker? Look no further than SLD, a leading brand in the industry. Our Container Reach Stacker is perfect for container unloading, container reach stacking, and container transportation. With a CUMMINS QSM11-330 engine, Kessler D102PL341 drive axle, and ZF 5WG261 AUTO transmission, this machine is sure to provide excellent performance and quality.

All of our Container Reach Stacker are brand new and CE certified, ISO certified, and FDA certified. The minimum order quantity is one unit and the price is negotiable. The packaging is nude and delivery time is 30 working days. Payment terms are L/C or T/T and our supply ability is 10 units per month.

For the best Container Reach Stacker, choose SLD. Contact us today for more information!



Support and Services:

Container Reach Stacker provides technical support and services to ensure that your operations run smoothly and efficiently. Our team of experienced technicians can assist with troubleshooting, repairs, and maintenance of your Container Reach Stacker. We offer on-site services, as well as remote support, to diagnose and resolve any issues that may arise. We also provide training and support on the latest software updates and safety protocols to ensure you are up-to-date. Our team of experts is here to help you get the most out of your equipment.



Packing and Shipping:

Packaging and Shipping: Container Reach Stacker

The Container Reach Stacker is shipped in a secure packaging to ensure it reaches the destination in a good condition. The package is designed to protect the product during transportation and includes the following components:

  • A cardboard box
  • Bubble wrap or other protective material
  • Pallet for secure shipment
  • Manuals, instructions and other documents

The package should be handled with care and special attention should be taken when lifting and moving the package. When unpacking, all components must be checked for any damage before assembly.



FAQ:

Q:What is the brand name of the Container Reach Stacker?
A:The brand name of the Container Reach Stacker is SLD.

Q:Where is the Container Reach Stacker made?
A:The Container Reach Stacker is made in China.

Q:What certifications does the Container Reach Stacker have?
A:The Container Reach Stacker has CE, ISO and FDA certifications.

Q:What is the minimum order quantity for the Container Reach Stacker?
A:The minimum order quantity for the Container Reach Stacker is 1 unit.

Q:What is the price of the Container Reach Stacker?
A:The price of the Container Reach Stacker is subject to negotiation.
