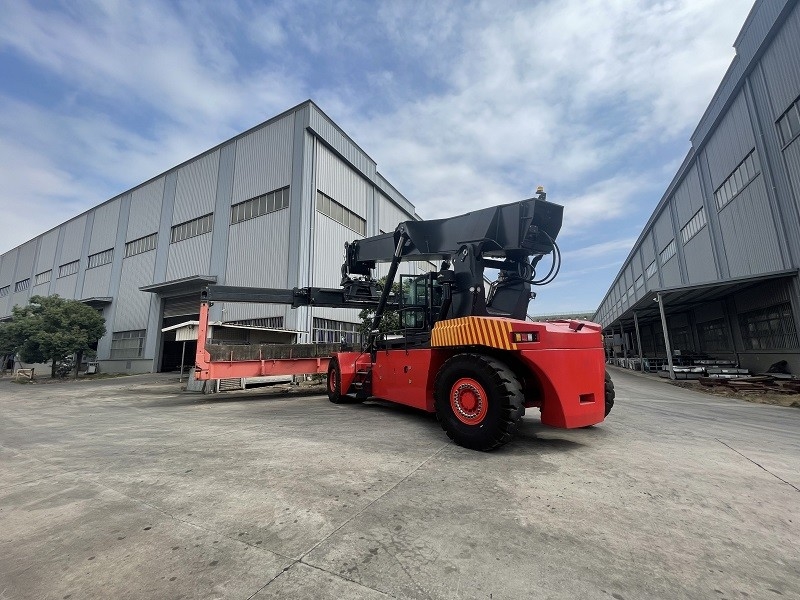

45 Ton Load CUMMINS QSM11-330 Cargo Container Stacker For Heavy Containers

45 Ton Load CUMMINS QSM11-330 Cargo Container Stacker For Heavy Containers
45 Ton Load CUMMINS QSM11-330 Cargo Container Stacker For Heavy Containers

Large Image :  45 Ton Load CUMMINS QSM11-330 Cargo Container Stacker For Heavy Containers

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: CE; ISO; FDA
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10 units per month
Detailed Product Description
Color: Red New Or Used: New
Drive Axle: Kessler D102PL341 Steering Axle: Kessler L102
Service Weight: 71400 Kgs (unload) Spreader Type: Handling ISO 20'-40' Containers
Performance: Quality Product Load Capacity: 45000kgs
Highlight:

45Ton Cargo Container Stacker

,

CUMMINS Heavy Container Stacker

,

QSM11-330 Container Stacker

45 Ton Load CUMMINS QSM11-330Cargo Container Stacker For Heavy Containers

Product Description:

Container Reach Stacker is a high performance product designed for transporting, handling and movement of ISO 20'-40' containers. It is equipped with CUMMINS QSM11-330 engine and ZF 5WG261 AUTO transmission to achieve superior performance. The service weight of this stacker is 71400 Kgs (unload), making it ideal for the transportation of large containers. With its high-quality design, the Container Reach Stacker is suitable for a variety of container transportation scenarios. The product is reliable and offers exceptional efficiency and safety.



Technical Parameters:

CHARACTERISTICS
Model SLDR450
Power unit Diesel
Operation type Driver seated
Load capacity (L1, L2, L3) Q (kg) 45000/31000/16000
Load centre, first row (L1) c (mm) 1800
Load centre, second row (L2) C (mm) 3860
Load centre, third row (L3) C (mm) 6400
Axle centre to spreader center (L1-1/2 high) x (mm) 2800
Wheelbase y (mm) 6400
DIMENSIONS
Boom lift angle, raise/lowered α/β(/°) 61/0
Height boom lowered h1 (mm) 4945
Lift height (L1, L2, L3) h3 (mm) 15900/14100/11350
Height, boom extended h4 (mm) 19000
Height of cabin h6 (mm) 3900
Height, operator's seat h7 (mm) 2840
Towing coupling height h10 (mm) 600
Twist lock height lowered h13 (mm) 1495
Overall length with spreader l1 (mm) 11618
Overall length l2 (mm) 8410
Overall width b1/b2 (mm) 4180/3400
Width of spreader 20'/40' b3 (mm) 6050/12150
Ground clearance min. m1 (mm) 345
Ground clearance, centre of wheelbase m2 (mm) 350
Stacking aisle 20' containers Ast (mm) 10225
Stacking aisle 40' containersTurning radius Ast (mm) 13050
Min. pivoting point distance Wa (mm) 8605
Min. pivoting point distance b13 (mm) 3400
Wheelspan, front wheels b10 (mm) 3030
Wheelspan, rear wheel b11 (mm) 2786
WEIGHT
Weight (unladen/laden) kg 71400/116400
Load on drive axle (unladen/laden) kg 36400/101900
Load on steering axle (unladen/laden) kg 35000/14500
PERFORMANCE
Travelling speed (unladen/laden) Km/h 25/21
Gradeability (unladen/laden) % 30/28.8
Tractive force (unladen) Kn 408
Lifting speed (unladen/laden) m/s 0.39/0.28
Lowering speed (unladen/laden) m/s 0.39/0.39
CABIN
Movable closed cabin
Equipped with A/C, cooling/heating functions
Noise level at driver's seat dBA 74
ENGINE
Brand   CUMMINS
Type   QSM11
Cylinder no./displacement   6/10820 cm3
Rated power @ rated speed   250kw @ 2100rpm
Max. torque   1674Nm@ 1500rpm
Rated current of alternator   150A
Battery   24V
TRANSMISSION
Brand   ZF/5WG261 AUTO
Type   Auto-shift/interlock
Clutch type   Torque converter
Gear no.   5F/3R
TYRES
Drive wheels   18.00-25 40PR
Steering wheels   18.00-25 40PR
Type   Pneumatic
Pressure   10 bar
Quantity, front/rear   4/2
TANKS CAPACITY
Hydraulic oil tank L 800
Fuel tank L 500
DRIVE AXLE
Brand   Kessler/Germany
Model   D102PL341
STEERING AXLE
Brand   Kessler/Germany
Model   L102
Steering   Double action cylinder
BRAKE SYSTEM
Service brake   Hydraulic wet-disc
Parking brake   Electric released disc brake, enabled when power off
HYDRAULIC SYSTEM
Twin piston pump
Max. pressure: 310 bar
Load sensing system
Hydraulic cooler with electric motor
Separate brake oil tank
BOOM
2x Dual action lift cylinders
1x Dual action extension cylinder
SPREADER
Handling ISO 20'-40' containers
2x damping cylinder 2x gearbox & brake system
Brand SP45
Rotate degrees -105°/+195°
Sideshift -800/+800mm
TRUCK SAFETIES
Error display system
Counter system for containers
Weighing system (low precision)
Electric anti-overload system
Full can-bus control system
Direction gearshift interlock
Parking brake enabled when power off
Seat switch
SPREADER SAFETIES
Locking/unlocking only after correct landing
Lifting/lowering only when the 4 twistlocks on same position
Anticollision rotation limit switch


Applications:

Container Reach Stacker, also known as Container Cargo Stacker, Container Transportation Stacker, Container Handling Stacker, Container Logistics Stacker, is an essential equipment for container logistics, and it is made by SLD, a professional manufacturer from China. It is certified by CE, ISO, and FDA. The minimum order quantity is just one unit. The price is negotiable. It is packaged in a nude way. The delivery time is about 30 working days. The payment terms are L/C, T/T. The supply ability is 10 units per month. The drive axle is Kessler D102PL341. The engine is CUMMINS QSM11-330, and the service weight is 71400 kgs (unload). The maximum load capacity is 45000 kgs. And this Container Reach Stacker is also suitable for handling ISO 20'-40' containers.




Packing and Shipping:

Packaging and Shipping for Container Reach Stacker

The Container Reach Stacker is packaged and shipped in a secure container. The Container Reach Stacker is loaded and secured onto the shipping container before closing the container and securing the doors. The Container Reach Stacker is then transported to the customer's location.

The Container Reach Stacker is then unloaded from the shipping container and is ready to be used.



FAQ:

Q1: What is the brand of your Container Reach Stacker?

A1: Our Container Reach Stacker is SLD brand from China.

Q2: Does your Container Reach Stacker have CE, ISO and FDA certifications?

A2: Yes, our Container Reach Stacker has CE, ISO and FDA certifications.

Q3: What is the minimum order quantity for your Container Reach Stacker?

A3: The minimum order quantity for our Container Reach Stacker is 1 unit.

Q4: How much is the price of your Container Reach Stacker?

A4: The price of our Container Reach Stacker is negotiable.

Q5: How is the delivery time for your Container Reach Stacker?

A5: The delivery time for our Container Reach Stacker is 30 working days.
