| Steering Axle: | Kessler L102 | Engine: | CUMMINS QSM11-330 |
|---|---|---|---|
| Service Weight: | 71400 Kgs (unload) | Load Capacity: | 45000kgs |
| Performance: | Quality Product | New Or Used: | New |
| Transmission: | ZF 5WG261 AUTO | Spreader Type: | Handling ISO 20'-40' Containers |
| Highlight: | Cummins Container Reach Stacker,Diesel Container Reach Stacker,Cummins Reach Stacker Forklift |
||

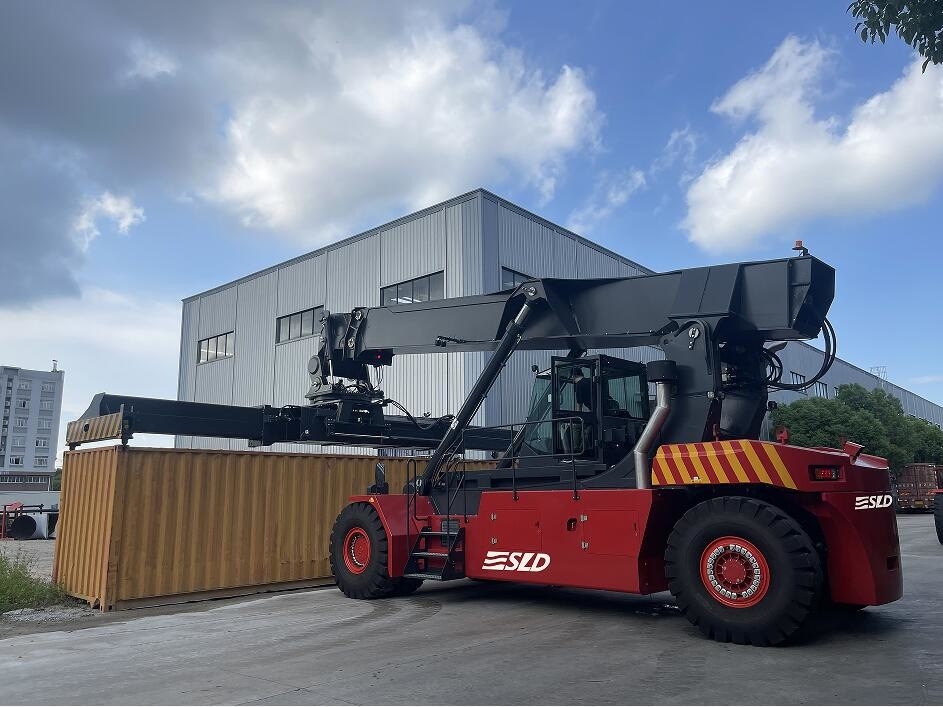

This Container Reach Stacker is a powerful container handling machine designed for efficient and safe loading and unloading of ISO 20'-40' containers. This high-performance stacker is capable of a service weight of 71400 Kgs (unload) and is equipped with a Kessler D102PL341 drive axle, ZF 5WG261 AUTO transmission and a spreader for handling ISO 20'-40' containers. It is the perfect solution for any loading or unloading task, allowing for fast and efficient operation with its superior maneuverability. This Container Reach Stacker is built with the highest quality to ensure maximum reliability and durability, while its bright red colour adds to its aesthetic appeal. With its user-friendly operation, this stacker is the ideal choice for any container loading and unloading operations.
SLD is a leading Chinese manufacturing company providing Container Reach Stackers with quality, certification, and efficiency. Our products are equipped with the latest technology and are made with high-quality materials. Our Container Reach Stackers have a capacity of 45000kgs and are suitable for handling ISO 20'-40' containers. They are available in red and have a service weight of 71400kgs (unload). Furthermore, they are available at competitive prices ranging from USD31,8840.00 to USD334,589.00 per unit. We also offer customized services and delivery within 30 working days.
We guarantee safe and secure payment options with L/C and T/T. Our products have certification from CE, ISO, and FDA, and have a minimum order quantity of 1 unit. We provide packaging in nude and have a supply ability of 10 units per month. If you are looking for a reliable and efficient Container Reach Stacker, then SLD is the right choice for you.
| CHARACTERISTICS | ||
| Model | SLDR450 | |
| Power | Diesel | |
| Operation type | Driver seated | |
| Load capacity (L1, L2, L3) | Q (kg) | 45000/31000/16000 |
| Load center, first row (L1) | c (mm) | 1800 |
| Load center , second row (L2) | C (mm) | 3860 |
| Load center, third row (L3) | C (mm) | 6400 |
| Axle center to spreader center (L1-1/2 high) | x (mm) | 2800 |
| Wheelbase | y (mm) | 6400 |
| DIMENSIONS | ||
| Boom lift angle, raise/lowered | α/β(/°) | 61/0 |
| Height boom lowered | h1 (mm) | 4945 |
| Lift height (L1, L2, L3) | h3 (mm) | 15900/14100/11350 |
| Height, boom extended | h4 (mm) | 19000 |
| Height of cabin | h6 (mm) | 3900 |
| Height, operator's seat | h7 (mm) | 2840 |
| Towing coupling height | h10 (mm) | 600 |
| Twist lock height lowered | h13 (mm) | 1495 |
| Overall length with spreader | l1 (mm) | 11618 |
| Overall length | l2 (mm) | 8410 |
| Overall width | b1/b2 (mm) | 4180/3400 |
| Width of spreader 20'/40' | b3 (mm) | 6050/12150 |
| Ground clearance min. | m1 (mm) | 345 |
| Ground clearance, center of wheelbase | m2 (mm) | 350 |
| Stacking aisle 20' containers | Ast (mm) | 10225 |
| Stacking aisle 40' containers | Ast (mm) | 13050 |
| Turning radius | Wa (mm) | 8605 |
| Min. pivoting point distance | b13 (mm) | 3400 |
| Wheel tread, front wheels | b10 (mm) | 3030 |
| Wheel tread, rear wheel | b11 (mm) | 2786 |
| WEIGHT | ||
| Weight (unladen/laden) | kg | 71400/116400 |
| Load on drive axle (unladen/laden) | kg | 36400/101900 |
| Load on steering axle (unladen/laden) | kg | 35000/14500 |
| PERFORMANCE | ||
| Travelling speed (unladen/laden) | Km/h | 25/21 |
| Gradeability (unladen/laden) | % | 30/28.8 |
| Tractive force (unladen) | Kn | 408 |
| Lifting speed (unladen/laden) | m/s | 0.39/0.28 |
| Lowering speed (unladen/laden) | m/s | 0.39/0.39 |
| CABIN | ||
| Movable closed cabin | ||
| Equipped with A/C, cooling/heating functions | ||
| Noise level at driver's seat | dBA | 74 |
| ENGINE | ||
| Brand | CUMMINS | |
| Type | QSM11 | |
| Cylinder no./displacement | 6/10820 cm3 | |
| Rated power @ rated speed | 250kw @ 2100rpm | |
| Max. torque | 1674Nm@ 1500rpm | |
| Rated current of alternator | 150A | |
| Battery | 24V | |
| TRANSMISSION | ||
| Brand | ZF/5WG261 AUTO | |
| Type | Auto-shift/interlock | |
| Clutch type | Torque converter | |
| Gear no. | 5F/3R | |
| TYRES | ||
| Drive wheels | 18.00-25 40PR | |
| Steering wheels | 18.00-25 40PR | |
| Type | Pneumatic | |
| Pressure | 10 bar | |
| Quantity, front/rear | 4/2 | |
| TANKS CAPACITY | ||
| Hydraulic oil tank | L | 800 |
| Fuel tank | L | 500 |
| DRIVE AXLE | ||
| Brand | Cummins Meritor Axletech | |
| Model | PRC7545W4S586C | |
| STEERING AXLE | ||
| Brand | Anqing | |
| Model | AQ-Z45W1 | |
| Steering | Double action cylinder | |
| BRAKE SYSTEM | ||
| Service brake | Hydraulic wet-disc | |
| Parking brake | Electric released disc brake, enabled when power off | |
| HYDRAULIC SYSTEM | ||
| Twin piston pump | ||
| Max. pressure: 310 bar | ||
| Load sensing system | ||
| Hydraulic cooler with electric motor | ||
| Separate brake oil tank | ||
| BOOM | ||
| 2x Dual action lift cylinders | ||
| 1x Dual action extension cylinder | ||
| SPREADER | ||
| Handling ISO 20'-40' containers | ||
| 2x damping cylinder | 2x gearbox & brake system | |
| Brand | SP45 | |
| Rotate degrees | -105°/+195° | |
| Sideshift | -800/+800mm | |
|
TRUCK SAFETIES |
||
| Error display system | ||
| Counter system for containers | ||
| Weighing system (low precision) | ||
| Electric anti-overload system | ||
| Full can-bus control system | ||
| Direction gearshift interlock | ||
| Parking brake enabled when power off | ||
| Seat switch | ||
| SPREADER SAFETIES | ||
| Locking/unlocking only after correct landing | ||
| Lifting/lowering only when the 4 twistlocks on same position | ||
| Anticollision rotation limit switch | ||
SLD Container Reach Stacker is a quality cargo container stacker designed to meet the needs of cargo handling. With its CE, ISO, and FDA certifications and a minimum order quantity of one unit, SLD Container Reach Stacker is reliable and cost-effective. It is equipped with a CUMMINS QSM11-330 engine and a Kessler L102 steering axle, ensuring maximum efficiency and performance. Its spreader type is suitable for handling ISO 20'-40' containers, making it an excellent choice for cargo handling. And with its competitive price range of USD31,8840.00~USD334,589.00 Unit, it offers great value for your investment.
SLD Container Reach Stacker is designed for maximum cargo handling efficiency. It is available in both new and used models and comes in a nude packaging. Delivery time is typically 30 working days, and SLD is able to supply up to 10 units per month. With its quality product, SLD Container Reach Stacker is the perfect choice for cargo handling.
Brand Name: SLD
Place of Origin: China
Certification: CE; ISO; FDA
Minimum Order Quantity: 1 unit
Price: USD31,8840.00~USD334,589.00 Unit
Packaging Details: Nude
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10 units per month
New Or Used: New
Color: Red
Load Capacity: 45000kgs
Spreader Type: Handling ISO 20'-40' Containers
Service Weight: 71400 Kgs (unload)
