Product Details:
Payment & Shipping Terms:
|
| Power Type: | Diesel | Engine: | ISUZU Or YANMAR Or Chinese Xichai |
|---|---|---|---|
| Rated Load: | 2500 Kgs | Transmission: | Automatic |
| Load Center: | 500mm | Lift Height: | 4000mm |
| Service Weight: | 3560mm | Fork Size: | 1070x120x40mm |
| Mast: | 2 Stage/3 Stage | ||
| Highlight: | 2 Stage Mast 2.5 Ton Forklift,Diesel Forklift Truck Lifting Height 4000mm,2.5 Ton Forklift With Side Shift |
||

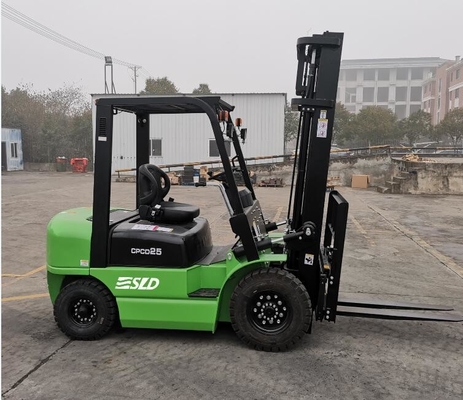

Advantages of CPCD250 fork lift truck 2.5 tons
1. Can match Chinese Xichai C490, Japan ISUZU C240 PKJ , Japan YANMAR or USA CUMMINS engine
2. Germany suspension seat with safety belt ,TCM brand technology gear box with auto transmission.
3. Wide mast to make sure good view.
4. Independent water tank, good heat dissipation system.
5. Options : side shift , fork positioner , Solid tyre , forklift attachment like paper roll clamp , push pull . bale clamp and so on .
| Manufacturer | SLD | ||||||
| Model | FD20 | FD25 | FD30 | FD35 | |||
| Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | ||
| Load center | mm | 500 | |||||
| Gearbox change speed type | Hydraulic/ Mechanical | ||||||
| Power type | Diesel | ||||||
| Tire type | Front/ Rear | Pneumatic | |||||
| Wheels | Front Rear | 2/2 | |||||
| Lift height | mm | 3000 | |||||
| Free lift height | mm | 140 | 145 | ||||
| Fork size | L*W*T | mm | 1070x120x40 | 1070x120x45 | 1070x125x45 | 1070x130x45 | |
| Mast tilt angle | Fwd/Bwd | deg | 6/12 | ||||
| Overall length (without fork) | mm | 2510 | 2580 | 2720 | 2775 | ||
| Overall width | mm | 1150 | 1225 | ||||
| Mast height fork lowered | mm | 2050 | 2080 | 2230 | |||
| Overall height fork raised | mm | 4040 | 4272 | ||||
| Overall height (overhead guard) | mm | 2060 | 2090 | ||||
| Turning radius (outside) | mm | 2170 | 2240 | 2460 | 2540 | ||
| Load distance (centerline of front axle to front face of forks) | mm | 484 | 489 | 494 | 500 | ||
| Max.Gradeability | % | 20 | 15 | ||||
| Self weight | kg | 3550 | 3880 | 4380 | 4750 | ||
FAQ
Q1: How long is the Warranty for product?
A1: We provides 24 months or 2500 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually RUMLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: How about the continuous working time for the electric series forklifts & Stackers ? And How long time to charge the battery full ?
A3: RUMLIFT battery continuous working time is around 4-6hours( depend on battery volume and people operation ), when the red light of dashboard flashing ,need to charging ,about 5 hours can be finish ,RUMLIFT'S charge is intelligent,once the battery is full , will stop to charging .
Q4 How about the battery working life ?
A4: our Battery is from DIN standard battery ( Germany technology), can be working 6 years without any problem.
Q5: Can RUMLIFT provide customized products? OEM products or ODM products?
A5: Yes, RUMLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.
Q6: What's the specification of the chargers?
A6: Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
