Product Details:
Payment & Shipping Terms:
|
| Power Type: | Diesel | Engine: | Japan ISUZU Or MITSUBISHI Or Chinese Xinchai |
|---|---|---|---|
| Transmission: | Electronic Control Hydraulic | Rated Load: | 3000kgs |
| Load Center: | 500mm | Lift Height: | 4000mm |
| Wheelbase: | 1700mm | Service Weight: | 4600mm |
| Overall Dimension(without Fork): | 2730x1225x2115mm | Fork Size: | 1070x125x45mm |
| Highlight: | 3 Ton Diesel Forklift CPCD30,Full Closed Cabin 3 Ton Forklift,Lifting Height 4m 3 Ton Forklift |
||

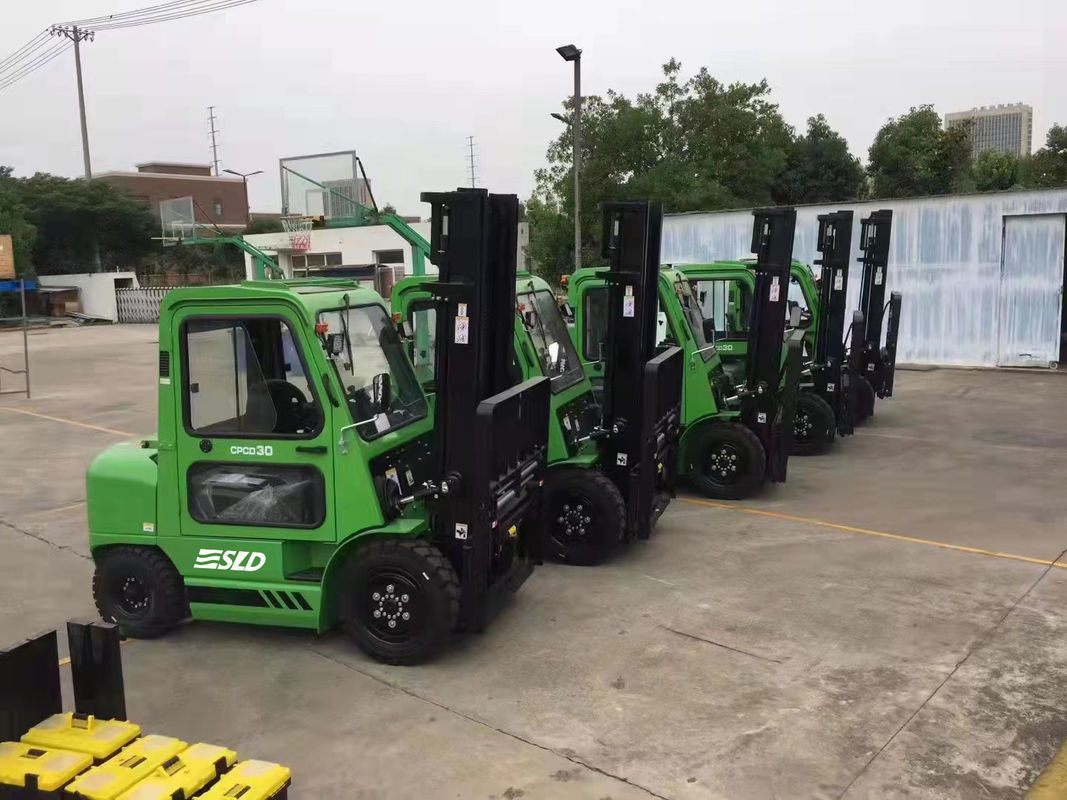

CPCD30 Diesel Forklift With High Lifting Height 4m And Full Closed Cabin
Main features and advantages of diesel forklifts :
Security system
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
Lighting system
Equipped with full set of LED lamps, which are brighter and energy saving.
Power system
Equipped with Chinese powerful and reliable engine with excellent environmental performance. Original imported ISUZU, YANMAR, MITSUBISHI and CUMMINS engines as options.
Driving system
Adopt heavy load driven axle, make sure safety performance in all working conditions, strong stable drive axle is more durable, make good service life of forklifts.
Hydraulic system
Adopt advanced hydraulic system technology, effectively solve the system heating problem, protect the system center, effectively transmit power, and save your cost.
Control system
Operation sequence protection function, interactive multi-functional liquid crystal instrument, imported sealing elements with more reliable performance, electronic control self-protection function, and electromagnetic compatibility meet international standards.
Lifting system
Adopt high strength portal frame channel steel ,stronger structure, humanized design wide view mast. The lifting rod is equipped with shock-absorbing landing buffer oil cylinder, which well ensures the safety of goods.
|
General |
|
|
|
|
|
Model |
|
FD30 |
FD35 |
|
|
Power Type |
|
Diesel |
Diesel |
|
|
Load Capacity |
kg |
3000 |
3500 |
|
|
Load centre |
mm |
500 |
500 |
|
|
Tyre |
|
|
|
|
|
Tyre |
|
|
Pneumatic Tyre |
Pneumatic Tyre |
|
Front Tyre |
|
28*9-15-12PR |
28*9-15-12PR |
|
|
Rear Tyre |
|
6.50-10-10PR |
6.50-10-10PR |
|
|
Overall Dimension |
|
|
|
|
|
Lift Height |
mm |
3000 |
3000 |
|
|
Fork Size |
L×W×T |
mm |
1070*125*45 |
1070*125*50 |
|
Mast Tilt Angle |
F/R |
. |
6/12 |
6/12 |
|
Mast Lowered Height |
mm |
2115 |
2115 |
|
|
Mast Extended Height(with backrest) |
mm |
4175 |
4150 |
|
|
Length to face of fork(Without fork) |
mm |
2710 |
2750 |
|
|
Overall Width |
mm |
1225 |
1225 |
|
|
Overhead Guard Height |
mm |
2090 |
2090 |
|
| Travel Speed(Empty load) | km/h | 19 | 19 | |
| Lifting Speed(Full load) | mm/s | 440 | 420 | |
