Product Details:
Payment & Shipping Terms:
|
| Rated Load: | 7000kgs | Load Center: | 600mm |
|---|---|---|---|
| Power Type: | Diesel | Engine: | ISUZU 6BG1 |
| Transmission: | Automatic | Overall Dimension(without Fork): | 3560x2010x2500mm |
| Service Weight: | 9750mm | Lift Height: | 6000mm |
| Wheelbase: | 2250mm | Fork Size: | 1220x150x70mm |
| Highlight: | ISUZU 6BG1 Engine Diesel Forklift Truck,7 Ton Load Diesel Forklift Truck,ISUZU 6BG1 Engine 7 Ton Forklift |
||

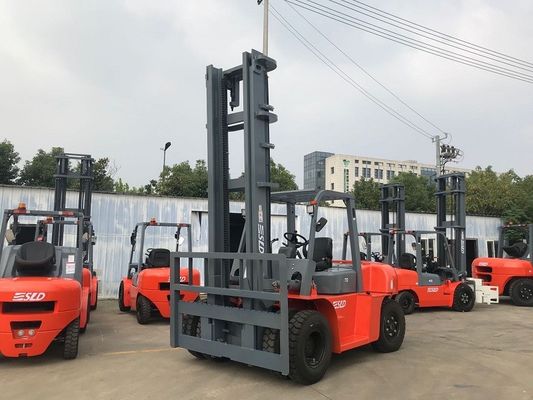

Hot Sale Good Quality 7 Tons Diesel Forklift Truck
7 ton diesel forklift truck adopt Chinese Xinchai engine or Japan ISUZU Mitsubishi engine, automatic transmission, load capacity 7000 kgs, load center 600mm, mast lifting height 3000mm, fork length 1220mm, pneumatic tires , overhead guard, LED lights etc.
Options: side shift, solid tires, triplex full free lift mast, forklift attachments etc
1. Power system
Equipped with Chinese powerful and reliable engine with excellent environmental performance. Original imported ISUZU, YANMAR, MITSUBISHI and CUMMINS engines as options.
2, Hydraulic system
Adopt advanced load sense technology which offers flow for steering system to save energy, protect environment, and lower the system heat.
3, Security system
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
4, Lighting system
Equipped with full set of LED lamps, which are brighter and energy saving.
5, Enviromental protection system
Install optional three-way catalytic device to lower the harmful emission beside of low emission engines; Adopt soundproof cotton to ease noise and high exhaust system as option to reduce dust.
|
General |
|
|
|
|
|
|
|
Model |
|
FD50 |
FD60 |
FD70 |
FD80 |
|
|
Power Type |
|
Diesel |
Diesel |
Diesel |
Diesel |
|
|
Load Capacity |
kg |
5000 |
6000 |
7000 |
8000 |
|
|
Load centre |
mm |
600 |
600 |
600 |
600 |
|
|
Tyre |
|
|
|
|
|
|
|
Tyre |
|
|
Pneumatic Tyre |
Pneumatic Tyre |
Pneumatic Tyre |
Pneumatic Tyre |
|
Front Tyre |
|
8.25-15-14PR |
8.25-15-14PR |
8.25-15-14PR |
8.25-15-18PR |
|
|
Rear Tyre |
|
8.25-15-14PR |
8.25-15-14PR |
8.25-15-14PR |
8.25-15-18PR |
|
|
Overall Dimension |
|
|
|
|
|
|
|
Lift Height |
mm |
3000 |
3000 |
3000 |
3000 |
|
|
Fork Size |
L×W×T |
mm |
1220×150×60 |
1220×150×60 |
1220×150×70 |
1220×150×70 |
|
Mast Tilt Angle |
F/R |
. |
6/12 |
6/12 |
6/12 |
6/12 |
|
Mast Lowered Height |
mm |
2500 |
2500 |
2500 |
2500 |
|
|
Mast Extended Height(with backrest) |
mm |
4415 |
4415 |
4415 |
4415 |
|
|
Length to face of fork(Without fork) |
mm |
3450 |
3450 |
3560 |
3560 |
|
|
Overall Width |
mm |
2010 |
2010 |
2010 |
2010 |
|
|
Overhead Guard Height |
mm |
2470 |
2470 |
2470 |
2470 |
|
