Product Details:
Payment & Shipping Terms:
|
| Power Type: | Diesel | Engine: | ISUZU Or MITSUBISHI |
|---|---|---|---|
| Transmission: | Hydraulic | Rated Load: | 3000kgs |
| Load Center: | 500mm | Lift Height: | 3000mm |
| Wheelbase: | 1700mm | Service Weight: | 4300mm |
| Fork Size: | 1070x125x45mm | Overall Dimension(without Fork): | 2730x1225x2115mm |
| Highlight: | Diesel Counterbalance Forklift Truck,3 Ton Counterbalance Forklift Truck,ISO 4 Wheel Pneumatic Tire Forklift |
||

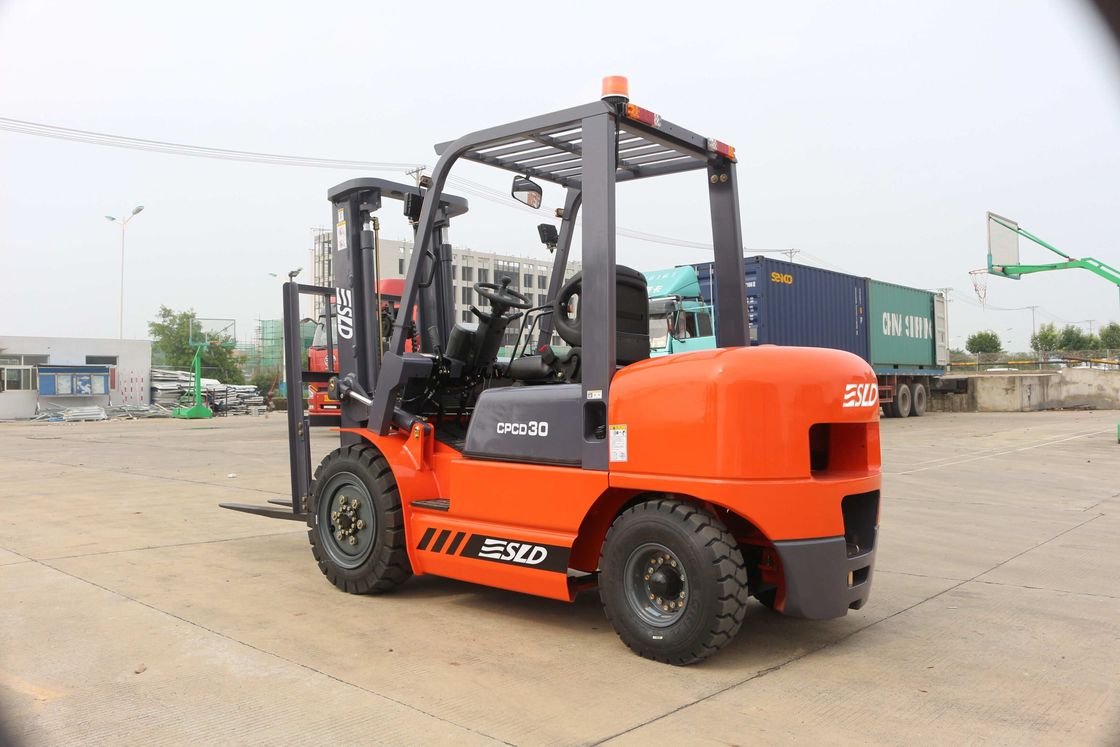

3 ton diesel forklift counterbalance forklift truck with four wheel pneumatic tire
Forklift advantages:
1. Hydraulic system
Adopt advanced load sense technology which offers flow for steering system to save energy, protect environment, and lower the system heat.
2. Security system
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
3. Power System: Equipped with Chinese powerful and reliable engine with excellent environmental performance. Original imported ISUZU, YANMAR, MITSUBISHI and CUMMINS engines as options.
Engine Option
| Item | Manufacture | C/O | Model | No.of Cylinder | Displacement(CC) | Rated Output/r.p.m(kw) | Rated Torque/r.p.m(N.m) | Bore*Stroke |
| 1 | ISUZU | JAPAN | C240NKFC-01 | 4 | 2369 | 35.4/2500 | 137.7/1800 | 86*102 |
| 2 | ISUZU | JAPAN | 4JG2PE-01 | 4 | 3059 | 46/2450 | 184.7/1600-1800 | 95.4*107 |
| 3 | YANMAR | JAPAN | 4TNE98-BQFLC | 4 | 3318 | 42.1/2300 | 177.6-196.3/1700 | 98*110 |
| 4 | MITSUBISHI | JAPAN | S4S | 4 | 3331 | 35.3/2250 | 169/1700 | 94*120 |
| 5 | XINCHAI | CHINA | A498BPG-520 | 4 | 3170 | 45/2500 | 193/1800 | 98*105 |
| 6 | XINCHAI | CHINA | C490BPG-236 | 4 | 2670 | 40/2650 | 160/1800-2000 | 90*105 |
4. Super comfortable: forklifts are all with comfortable driving space,adjustable steering wheel and seats,super low and non-slip step,suspension steering axle,storing space,and convenient LCD panel.
5. Forklift can equip with different attachments according to your need.
Standard configuration: Japan ISUZU C240PKJ engine , hydraulic transmission, standard 2 stage mast lifting height 3000mm, fork length 1070mm, pneumatic tires, overhead guard, warning light etc.
Options: Chinese engine or Yanmar engine, solid tires, full cabin with A/C, triplex mast higher lifting height etc.
|
General |
|
|
|
|
|
Model |
|
FD30 |
FD35 |
|
|
Power Type |
|
Diesel |
Diesel |
|
|
Load Capacity |
kg |
3000 |
3500 |
|
|
Load centre |
mm |
500 |
500 |
|
|
Tyre |
|
|
|
|
|
Tyre |
|
|
Pneumatic Tyre |
Pneumatic Tyre |
|
Front Tyre |
|
28*9-15-12PR |
28*9-15-12PR |
|
|
Rear Tyre |
|
6.50-10-10PR |
6.50-10-10PR |
|
|
Overall Dimension |
|
|
|
|
|
Lift Height |
mm |
3000 |
3000 |
|
|
Fork Size |
L×W×T |
mm |
1070*125*45 |
1070*125*50 |
|
Mast Tilt Angle |
F/R |
. |
6/12 |
6/12 |
|
Mast Lowered Height |
mm |
2115 |
2115 |
|
|
Mast Extended Height(with backrest) |
mm |
4175 |
4150 |
|
|
Length to face of fork(Without fork) |
mm |
2710 |
2750 |
|
|
Overall Width |
mm |
1225 |
1225 |
|
|
Overhead Guard Height |
mm |
2090 |
2090 |
|
| Travel Speed(Empty load) | km/h | 19 | 19 | |
| Lifting Speed(Full load) | mm/s | 440 | 420 | |
