Product Details:
Payment & Shipping Terms:
|
| Power Type: | Electric | Rated Load: | 3000kgs |
|---|---|---|---|
| Overall Size: | 2560x1230x2120mm | Battery: | 80V/500Ah |
| Controller: | CURTIS | Load Center: | 500mm |
| Lift Height: | 3000mm | Wheelbase: | 1710mm |
| Fork Size: | 1070x125x45mm | Turning Radius: | 2315mm |
| Highlight: | 3.5 Ton Forklift FB30,FB30 Forklifts,3.5T Forklift FB30 |
||

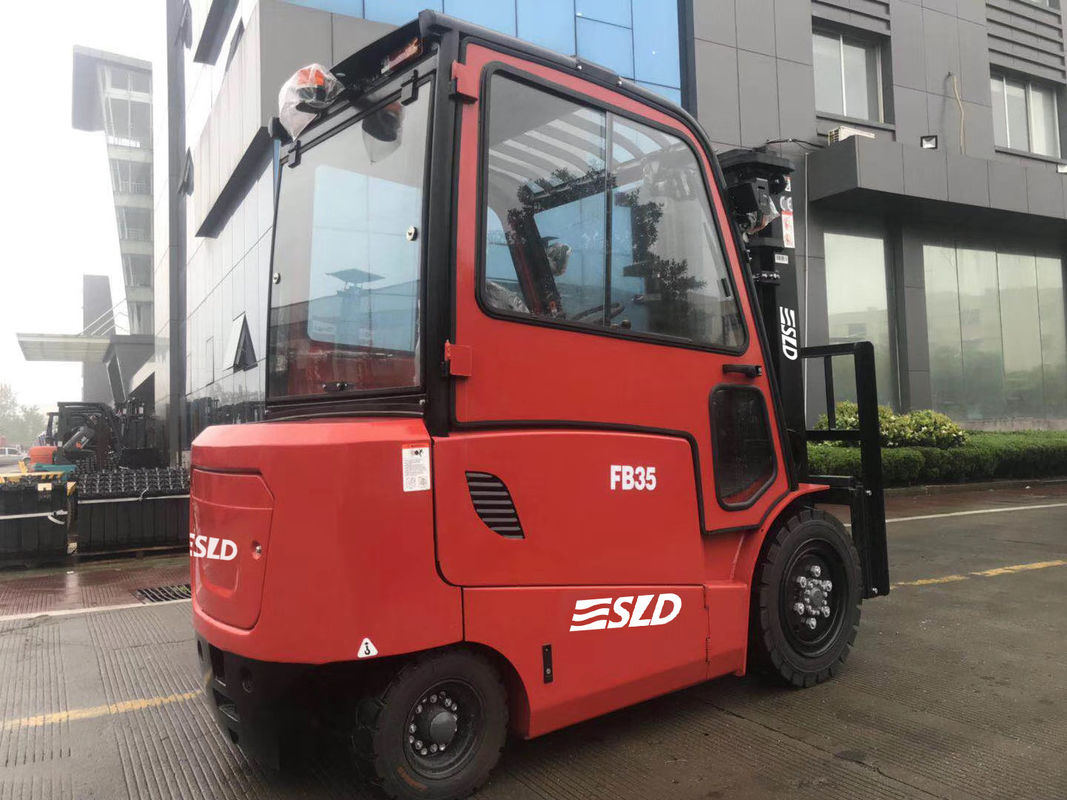

Lead-Acid Battery 3.5 Ton Electric Fork Lift Truck For Food Industry
3.5 tons electric forklifts refer to forklifts that use electricity to work, most of which work for batteries. The storage battery is a kind of battery, and its function is to store the limited electric energy and use it in a suitable place. Its working principle is to convert chemical energy into electrical energy. This type of battery is installed in the battery of an electric forklift. It should be noted that the battery should not be placed horizontally!
Because the inside of the battery is generally 22-28% dilute sulfuric acid. When the battery is being placed, the electrolyte can flood the electrode plates and there is still a little space left. If the battery is placed horizontally, a part of the electrode plates will be exposed to the air, which is very unfavorable for the electrode plates of the battery, and the observation hole of the general battery or There are vents on the top of the battery to communicate with the outside, so the battery's lateral discharge solution can easily flow out.
| General | ||||
| Model | FB30 | FB35 | ||
| Power Type | Electric | Electric | ||
| Load Capacity | kg | 3000 | 3500 | |
| Load centre | mm | 500 | 500 | |
| Tyre | ||||
| Tyre | Pneumatic Tyre |
Front:Pneumatic Tyre Rear:Solid Tyre |
||
| Front Tyre | 28×9-15-12PR | 28×9-15-12PR | ||
| Rear Tyre | 18×7-8-14PR | 18×7-8(Solid tyre) | ||
| Overall Dimension | ||||
| Lift Height | mm | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 1070×125×45 | 1070×125×50 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 |
| Mast Lowered Height | mm | 2115 | 2150 | |
| Mast Extended Height(with backrest) | mm | 4175 | 4175 | |
| Length to face of fork(Without fork) | mm | 2600 | 2600 | |
| Overall Width | mm | 1230 | 1230 | |
| Overhead Guard Height | mm | 2250 | 2250 | |
