Product Details:
Payment & Shipping Terms:
|
| Power Type: | Diesel | Overall Dimension(without Fork): | 3245x1430x2270mm |
|---|---|---|---|
| Service Weight: | 6980mm | Rated Load: | 5000kgs |
| Load Center: | 500mm | Lift Height: | 3000mm |
| Wheelbase: | 2100mm | Fork Size: | 1070x150x55mm |
| Engine: | ISUZU | Transmission: | Hydraulic |
| Highlight: | cpcd50 forklift,CPCD50,5T Forklift |
||

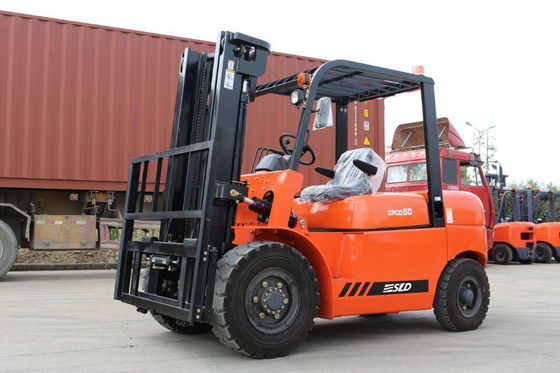

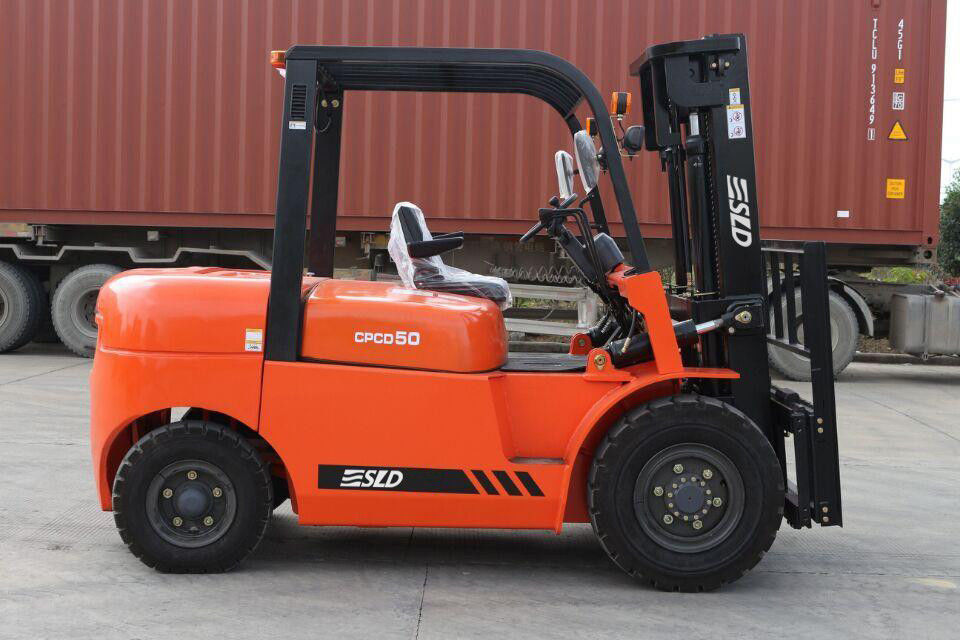

CPCD50 Small 5.0 Ton Strong Power Diesel Forklift Truck Option Solid Tire Lock Function
Forklift new generation diesel counter balance forklift advantages:
1.Bigger diameter of steering cylinder. The steering axle are improved into the integral casting parts.
The drive axle are improved into the inblock.
2.High Security.Whole perspective mast and backrest, super good view,high strength overhead guard,high place security combination lamp,
neutral security features,parking brake,fork lock function(optional),all for safety.
3.Smart designing suitable for working inside 20GP container.With KOREA brand KCC painting or Japan Nippon brand.
Standard configuration: Japan Mitsubishi or Perkins engine , hydraulic transmission, standard 2 stage mast lifting height 3000mm, fork length 1070mm, pneumatic tires, overhead guard, warning light etc.
Options: double or triplex mast lifting height 6000mm, solid tires, full cabin with A/C, side shift, lock function etc.
|
General |
|
|
|
|
|
|
Model |
|
FD40T |
FD45 |
FD50 |
|
|
Power Type |
|
Diesel |
Diesel |
Diesel |
|
|
Load Capacity |
kg |
4000 |
4500 |
5000 |
|
|
Load centre |
mm |
500 |
500 |
500 |
|
|
Tyre |
|
|
|
|
|
|
Tyre |
|
|
Pneumatic Tyre |
Pneumatic Tyre |
Pneumatic Tyre |
|
Front Tyre |
|
250-15-16PR |
300-15-18PR |
300-15-18PR |
|
|
Rear Tyre |
|
6.50-10-10PR |
7.00-12-12PR |
7.00-12-12PR |
|
|
Overall Dimension |
|
|
|
|
|
|
Lift Height |
mm |
3000 |
3000 |
3000 |
|
|
Fork Size |
L×W×T |
mm |
1070×125×50 |
1070×150×55 |
1070×150×55 |
|
Mast Tilt Angle |
F/R |
. |
6/12 |
6/12 |
6/12 |
|
Mast Lowered Height |
mm |
2195 |
2330 |
2330 |
|
|
Mast Extended Height(with backrest) |
mm |
4180 |
4165 |
4165 |
|
|
Length to face of fork(Without fork) |
mm |
2890 |
3245 |
3245 |
|
|
Overall Width |
mm |
1410 |
1430 |
1430 |
|
|
Overhead Guard Height |
mm |
2120 |
2340 |
2340 |
|
