| Power Type: | Diesel | Engine: | ISUZU 6BG1 |
|---|---|---|---|
| Overall Dimension LxWxH: | 6150x2620x3264mm | Wheelbase: | 3700mm |
| Service Weight: | 16000mm | Rated Load: | 10000kgs |
| Load Center: | 600mm | Max.Lifiting Height: | 3600mm |
| Fork Size: | 1220x175x85mm | Min.turning Radius: | 5570mm |
| Highlight: | FDS100 Side Loader Forklift,FDS100 side loader fork truck,Multi Directional Forklift FDS100 |
||

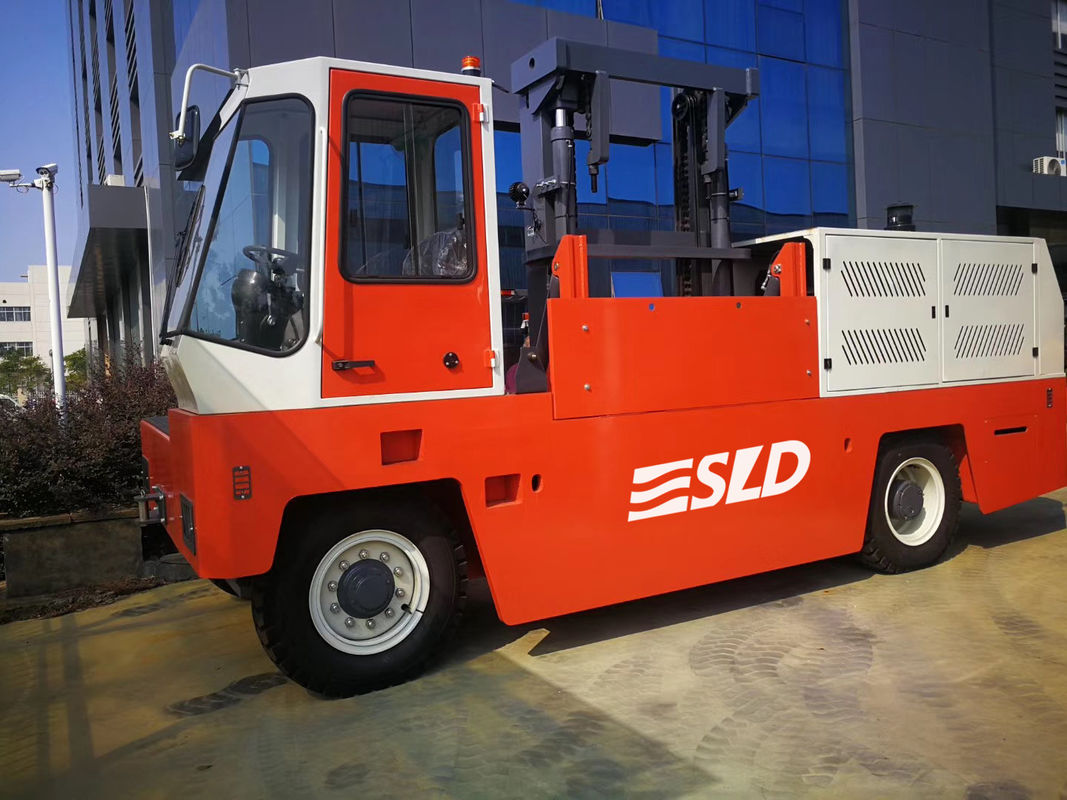

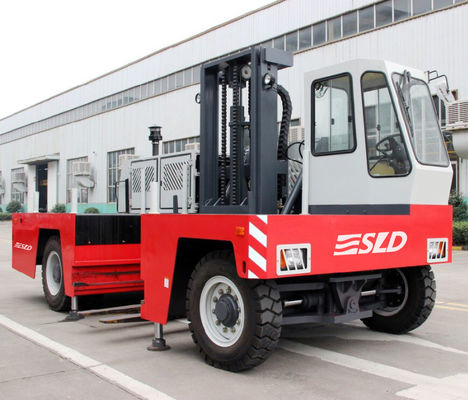

Side Loader Rated Load Capacity 10000kgs 10 Tons Diesel Side Forklift Hot Sale With ISUZU Engine
Side loader forklift are specially use in Warehouse,Port,Factory,Distribution Center,Logistics ect for side lifting long objects. such as steel bar, batten and other kinds of heterosexual strip object etc. good performance, high work efficiency, good for value.
Product categories of 3.0-12.0Ton Diesel Side Loader Forklift, we are specialized manufacturers from China, Side Loader Forklift, Diesel Side Loader Forklift suppliers/factory, wholesale high-quality products of 3.Ton~ 12.0Ton Diesel Side Loader Forklift R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
The specification of 10 tonsdiesel side loader forklift
| ITEM | FDS100 | |||
| Transmission | Hydraulic | |||
| Max. lifting capacity/Load center (kg/mm) | 10000/600 | |||
| Max. lifting height (laded) (mm) | 3600 | |||
| Fork free lift (mm) | 400 | |||
| Max. lifting speed (laded) (m/s) | ≥0.25 | |||
| Traveling speed (km/h) | Forward I | 8.3 | ||
| Forward II | 31.8 | |||
| Reverse | 11.25 | |||
| Fork tilt anger (front/rear) | 5/3 | |||
| Min. turning radius (mm) | 5800 | |||
| Gradeability (laded) (%) | 20 | |||
| Mini. ground clearance (laded) (mm) | 220 | |||
| Dimension (mm) | Length | 6200 | ||
| Width (without rearview) | 2600 | |||
| Height | Fork lowered | 3450 | ||
| Fork rised | 5230 | |||
| Wheel base (mm) | 3700 | |||
| Wheel track (mm) | 2200/2110 | |||
| Platform height (mm) | 1340 | |||
| Platform width (mm) | 1760 | |||
| Fork length (mm) | 1650 | |||
| Max. fork spacing (mm) | 1310 | |||
| Tire model (front/rear) 2/4 | 12.00-20-18PR | |||
| Weight unladed (kg) | 15000 | |||
| Engine Model | LR6105G6X | |||
| Rated power (Kw/rpm) | 77.2/2200 | |||
| Max. torque/speed (N.m/rpm) | 372/1400 | |||
3.0 Ton-12.0Ton Diesel Side Loader Forklift advantages:
- Work in Narrow Aisle
- Side loading advantage
- Use for long objects
- Rubber Mounted Half Open Cabin
- Multi-Direction Operation
- 3 Wheel hydrostatic Drive
- Load Sensing Steering
- 4 Way Lever Positioning of Wheels
- Hydraulic Oil Cooler
