Product Details:
Payment & Shipping Terms:
|
| Rated Load: | 15000kgs | Load Center: | 800mm |
|---|---|---|---|
| Mast Lifting Height: | 3000mm | Fork Size: | 1600×200×100mm |
| Service Weight: | 23800kgs | Wheelbase: | 3900mm |
| Engine: | Weichai Or Cummins | Engine Power: | 162kw |
| Color: | Yellow | New Or Used: | New |
| Highlight: | 15 Ton All Terrain Forklift,Four X Four All Terrain Forklift,FDM8150 4x4 forklift truck |
||

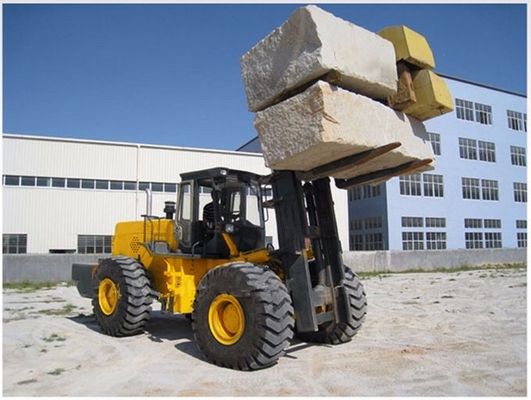

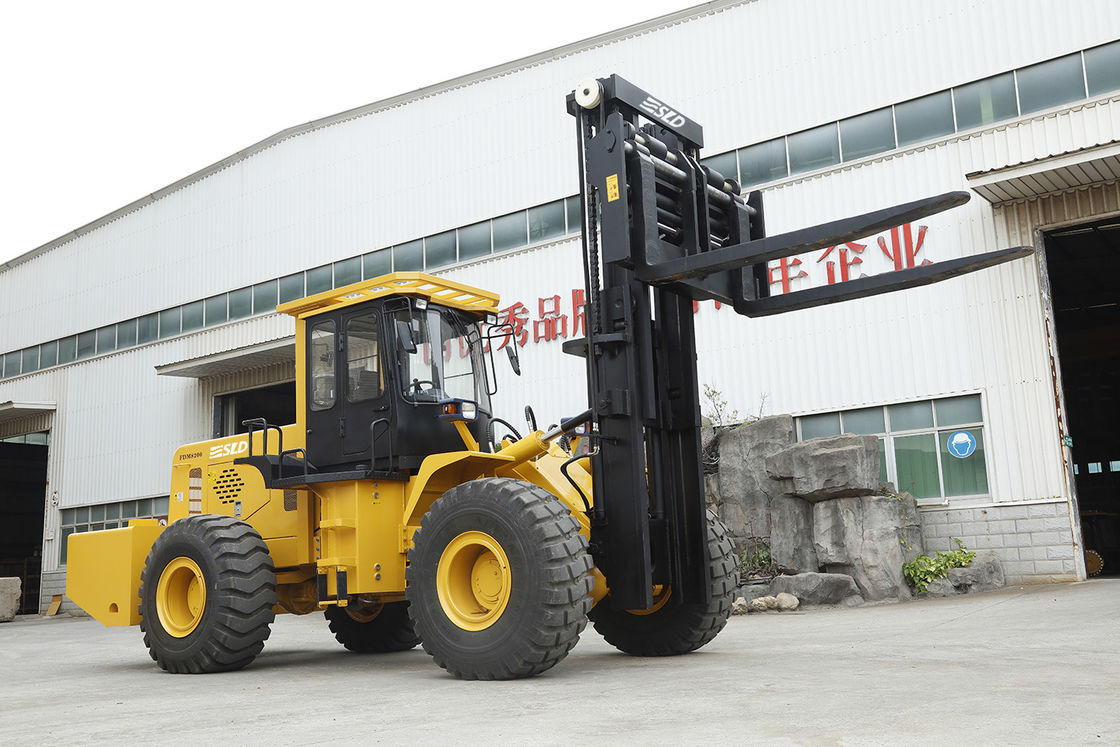

15 Tons Rough Terrian Forklift 4x4 Four Wheel Drive Rated Load 15000kgs forklift truck
| Speciflcation | ||||||
|
General |
Manufacturer | SLD | ||||
| Model | FDM8150 | |||||
| Power type | Diesel | |||||
| Rated loading capacity | Kg | 15000 | ||||
| Load center | mm | 800 | ||||
|
Dimensions |
Lift height | mm | 3000 | |||
| Free lift height | mm | 195 | ||||
| Fork size | mm | 1600×180×100 | ||||
| Fork distance | Min./Max. | mm | 400/1480 | |||
| Mast tilt anglc | Front/After | deg | 8/12 | |||
| Front overhang | mm | 950 | ||||
|
Overall dimensions |
Overall length | mm | 7500 | |||
| Overall width | mm | 2600 | ||||
| Mast lowered height | mm | 2980 | ||||
| Mast extended height | mm | 4380 | ||||
| Overhead guard height | mm | 3200 | ||||
| Turning radius | mm | 5500 | ||||
| Min.right angle aisle width | mm | 3500 | ||||
|
Performance |
No load/Full load |
Traveling Speed | km/h | 25/24 | ||
| Lifting spead | mm/sec | 320/270 | ||||
| Max.grade abnlity | % | 25 | ||||
| Max. Pull force(full load) | KN | 95 | ||||
| Self weight | kg | 23800 | ||||
|
Chassis |
Wheel size | Front | 26.5-25 | |||
| Rear | 26.5-25 | |||||
| Tread | Front | mm | 1500 | |||
| Rear | mm | 1550 | ||||
| Wheelbase | mm | 3900 | ||||
| Min.Ground clearance (No load/Full load) | Mast | mm | 230/220 | |||
| Frame | mm | 245/240 | ||||
|
Drive unit&control |
Battery | V/AH | 24/100×2 | |||
|
Engine |
Model | WD10G220E11 | ||||
| Manufacturer | WEICHAI | |||||
| Rated power | Kw/rpm | 162/2300 | ||||
| Rated torque | N.m/rpm | 1460/2400 | ||||
| NO.of cylinder | 6 | |||||
| Bore×Stroke | mm | 126×130 | ||||
| Displace ment | L | 9.726 | ||||
| Fule tank capacity | L | 200 | ||||
|
Transmissions |
Type | L | Hydraulic | |||
| Forwarder / Rear | 2/1 | |||||
We applied a lot of strict environment friendly designs on our 20 tons all terrain forklifts products. All these measures efficiently protect the user and improve the environment.
Solid State Digital instrument with built-in intellectual chip, what makes it sensitive, accurate, reliable, low power consumption and long service-life. It also works in wide temperature range(-40℃～+80℃) and with high interference resistant capability.
Power and transmission system is composed of excellent components by using advanced manufacturing technology and machine and high quality engine. This combination made the truck powerful reliable.
DESIGNED AND BUILT TO WORK IN A ROUGHT TERRAIN, EVEN IN A ROUGHEST TERRAIN WORKING CONDITIONS. IT IS SUITABLE TO OPERATE ON SOFT SOILS, PASTURES, MINE SITES AND MANY OTHER RUGGED SURFACE. IT IS A IDEAL MACHINE FOR LANSCOPES, CONSTRUCTION SITES, MINING COMPANIES.
