| Rated Load: | 3000kgs | Load Center: | 500mm |
|---|---|---|---|
| Max.Lifiting Height: | 3600mm | Min.turning Radius: | 4250mm |
| Overall Dimension LxWxH: | 4550x2000x2460mm | Fork Size: | 1070x125x45mm |
| Wheelbase: | 2580mm | Service Weight: | 6300mm |
| Power Type: | Diesel | Engine: | Yanmar 4TNE98 |
| Highlight: | Narrow Aisle Forklift,Narrow Aisle Lift Trucks,Narrow Aisle Forklift Truck |
||

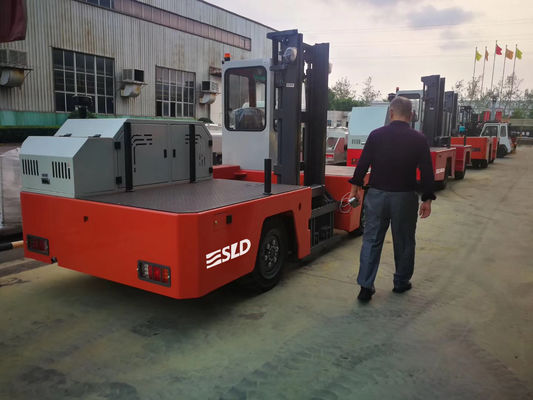

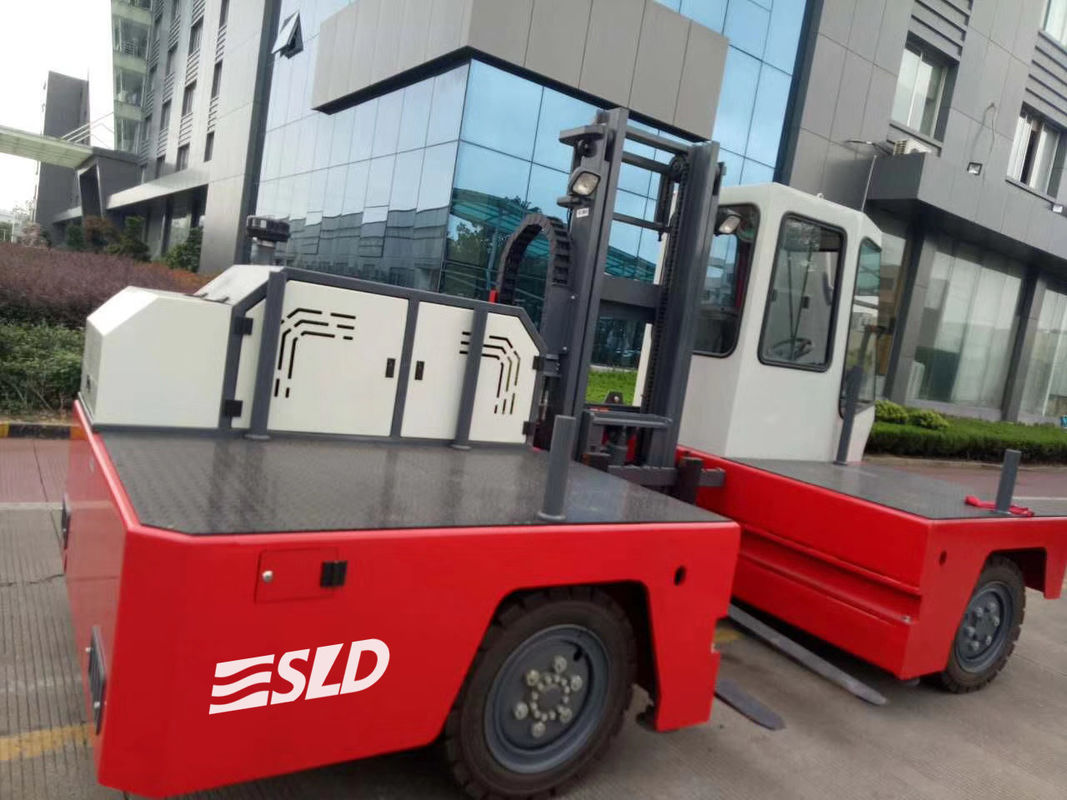

3 Tons Diesel Side Loader Forklift Use For Long Objects Work In Narrow Aisle
Chaoyang engine or Yanmar engine, low emission, low noise, and low oil consumption.hydraulic transmission, small turning radious, flexiable and reliable.It is particularly suitable for loading, unloading and transporting long and heavy goods such as section bar, aluminum, wood, cement, wire rod, and more. Currently it is increasingly used in the ports, terminals, industrial and mining enterprises, stations, warehouses, timber yards, and other areas.
Diesel Side Loader Forklift suppliers/factory, wholesale high-quality products of 3.Ton~ 12.0Ton Diesel Side Loader Forklift R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
3.0 Ton-12.0Ton Diesel Side Loader Forklift advantages:
- Work in Narrow Aisle
- Side loading advantage
- Used of long objects
- Rubber Mounted Half Open Cabin
- Multi-Direction Operation
- 3 Wheel hydrostatic Drive
- Load Sensing Steering
- 4 Way Lever Positioning of Wheels
- Hydraulic Oil Cooler
Application Area:
1.Warehouse
2.Port
3.Factory
4.Distribution Center
5.Logistics
The specification of 3 ton diesel side loader forklift
| General | |||
| Model | FDS30 | ||
| Power Type | Diesel | ||
| Load Capacity | kg | 3000 | |
| Load centre | mm | 500 | |
| Tyre | |||
| Tyre | Pneumatic Tyre | ||
| Front Tyre | 28×9-15-12PR | ||
| Rear Tyre | 28×9-15-12PR | ||
| Overall Dimension | |||
| Lift Height | mm | 3600 | |
| Fork Size | L×W×T | mm | 1070×125×45 |
| Mast Tilt Angle | F/R | . | 4/6 |
| Mast Lowered Height | mm | 2420 | |
| Mast Extended Height(with backrest) | mm | 4255 | |
| Length to face of fork(Without fork) | mm | 4550 | |
| Overall Width | mm | 2000 | |
| Cabin Height | mm | 2480 | |
| Loading Plane Height | mm | 89 | |
